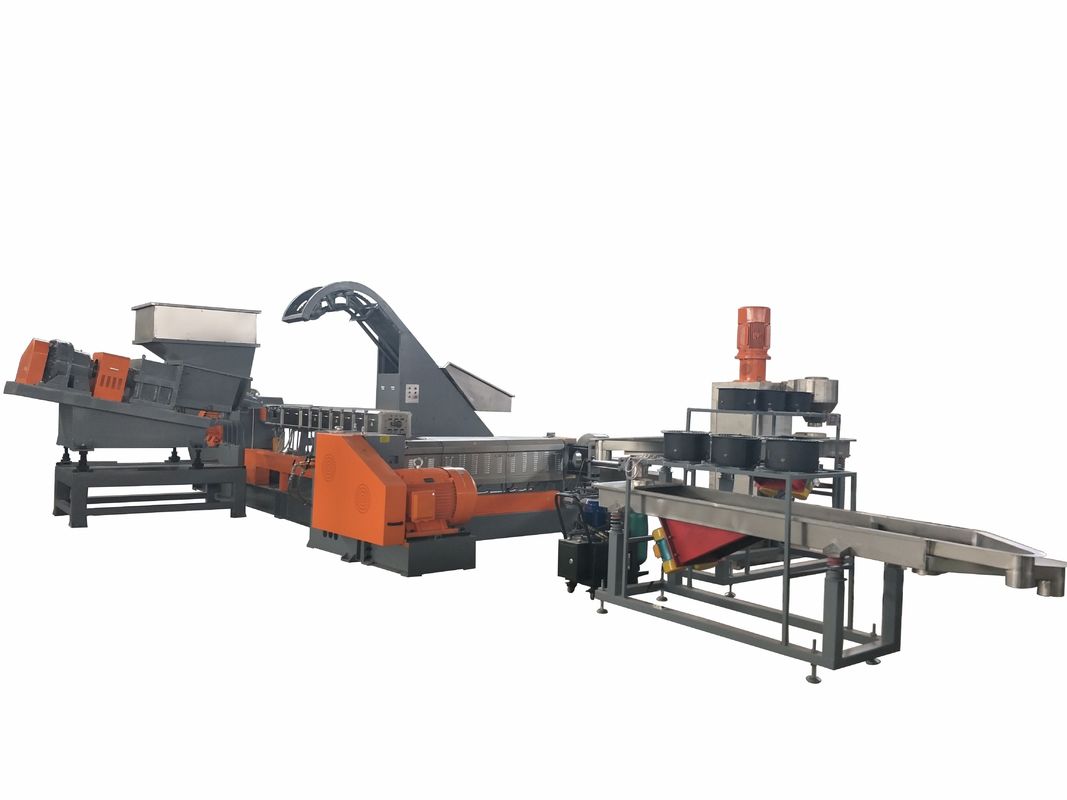

Carbon Black Single Screw Extruder Membuat Mesin Pelleting Line Untuk Granulasi
Pengenalan umum
Setiap bagian menyusun Carbon Black Single Screw Extruder Membuat Mesin Pelleting Line Untuk Granulasi: Kneader - Conveyor - Sekrup pengumpan kekuatan kembar - ekstruder sekrup tunggal - sistem kontrol listrik - sistem pelleting
Sistem Pelleting: Sistem pelleting untai air
Sistem pelleting bawah laut
sistem pendinginan peledakan udara muka mati
sistem pelleting cincin air
Model ekstruder sekrup tunggal
| Model | Kneader | Kneader Motor Power | L / D | Diameter | Tenaga motor |
| GSD-100 | 35L | 55KW | 12-22; 1 | 100 MM | 37-55KW |
| GSD-120 | 55L-75L | 75-110KW | 12-22; 1 | 120MM | 55-75KW |
| GSD-150 | 110L | 160KW | 12-22; 1 | 150MM | 75-110KW |
| GSD-180 | 150L | 220KW | 12-22; 1 | 180MM | 90-132KW |
Model kneader
| model | 3 L | 10 L | 20 L | 35 L | 55 L | 75 L | 110 L |
| kapasitas | 3 L | 10 L | 20 L | 35 L | 55 L | 75 L | 110 L |
| kg / batch | 1,5-5 | 8-15 | 15-25 | 26-45 | 45-75 | 60-85 | 100-140 |
| batch / jam | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| tekanan (MPA) | 0,2-0,4 | 0,4-0,6 | 0,4-0,6 | 0,6-0,8 | 0,6-0,8 | 0,6-0,8 | 0,6-0,8 |
| Daya motor (kw) | 5,5 | 15 | 30 | 55 | 75 | 110 | 160 |
| memiringkan motor (kw) | 0,55 | 0,75 | 1.5 | 1.5 | 2.2 | 3,75 | 5,5 |
| Silinder udara (mm) | 120 | 160 | 200 | 250 | 300 | 350 | 420 |
| Kecepatan: RPM | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 | 39/30 |
| Berat badan (kg) | 1000 | 2300 | 4000 | 6500 | 8500 | 10.000 | 14000 |
Kontak
Nanjing GS-mach Ekstrusi Peralatan Co, Ltd
No.1 Shanghu Industrial Park, Jalan Jiangning, Distrik Jiangning, Nanjing China
Ponsel: +86 18851021602
Tel: 86-25-81030382-8: 00 ~ 17: 00
Faks: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

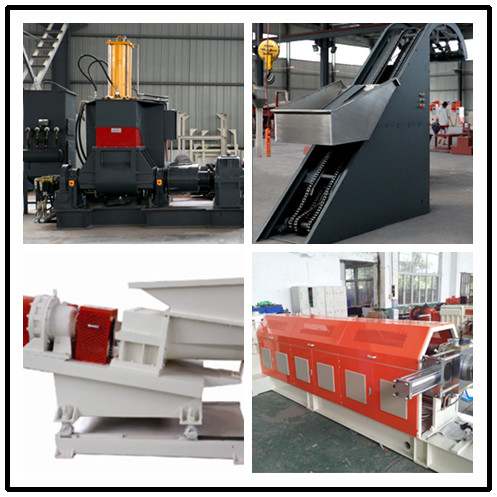

Gambar masing-masing bagian
